Vacuum Insulated Bottles MMZ-K351/K501/K601
The plug and gasket are made hygienic with an antibacterial finish.
It’s a simple, basic bottle that can be used in a wide range of situations.
| Size of product | Product number | MSRP |
|---|---|---|
| 0.35L | MMZ-K351 | 6,270yen (5,700yen excluding tax) |
| 0.5L | MMZ-K501 | 6,820yen (6,200yen excluding tax) |
| 0.6L | MMZ-K601 | 7,370yen (6,700yen excluding tax) |
Concept
Bottles from the BioGuard series combine antibacterial finishing based on JIS standards and Super Clean Plus processing technology for the bottle’s inner surface.
The MMZ-K series is a BioGuard type bottle with an antibacterial finish on the plug and gasket and a Super Clean Plus smooth surface finish that prevents stains and odors, making it safe and reliable.
Features
Safe and hygienic antibacterial finishing
We want to deliver bottles that are safer and more reliable.
With this in mind, we used an antibacterial finish.
An antibacterial finish has been applied to the plug and gasket, so it can be used hygienically at any time.
Antibacterial finishing
The MMZ-K series has a silver-based (Ag-based) antibacterial-finish.
- Test method: The antibacterial finish has been tested in accordance with JIS Z 2801 (ISO 22196).
- Testing organization: Evaluation Technical Center, Daiwa Chemical Industries Co., Ltd.
- Tested parts: Inner plug (inside of the plug)/gasket
*Please refer to the instruction manual for details. - Processing method:
Inner plug (inside of the plug) | Kneaded into the plastic material
Gasket | Kneaded into the silicon rubber - Antibacterial agent used: Silver-based antibacterial agent
- Test result: 2.0 or higher antibacterial activity value
“Antibacterial” refers to the prevention of bacterial growth.
Without antibacterial finish
With antibacterial finish
Result photo of antibacterial test based on JIS Z 2801 (ISO 22196)
*Result of tests conducted with the inner plug plastic of our MCT-K series, to which the same antibacterial finish as this product is applied.
Antibacterial stopper certified by the Society of International Sustaining Growth for Antimicrobial Articles (SIAA)
- Tested parts: Inner plug (inside of the plug)
- SIAA registration number: JP0122676X0001G
Products carrying the SIAA marks are subjected to quality control and information disclosure under the SIAA guidelines based on the results of evaluation conducted in accordance with ISO 22196.
The SIAA marks are symbols for KOHKIN (or antibacterial) established by the Society of International Sustaining Growth for Antimicrobial Articles.
Products that meet the three criteria of [1] antimicrobial properties (*1), [2] safety (*2) and [3] appropriate labeling (*3) may carry the SIAA mark.
(*1) The proportion of bacteria on the surface of the product must be equal to or less than 1/100 that of a non-treated product, and the antimicrobial effect must remain after durability tests. Antimicrobial properties are determined from the results of tests conducted in accordance with the international standard ISO 22196.
(*2) The safety criteria uniquely established by SIAA must be met.
(*3) The types of antibacterial agents used and parts treated must be clearly indicated.
Super Clean Plus to prevent stains and odors
The smooth and lustrous Super Clean Plus finish is applied to the inner surface of the bottle. This makes it resistant to stains and odors and hygienic to use. Furthermore, it allows you to put a sports drink containing salt in the bottle.
*Please clean the bottle by rinsing it with water immediately after use.
B: Without Super Clean Plus finish (small bumps and crevices on the surface that attracts stains and odors)
It’s so light that it’s like magic! The perfect Mujuryoku bottle to carry around
We have made our products lighter using our unique spinning process. The 0.35 L size weighs approximately 170 g, the 0.5 L size approximately 190 g, and the 0.6 L size approximately 230 g, making the lightweight Mujuryoku bottle ideal for carrying around when you’re out and about.
The bottle feels like a mug when you put it up to your mouth. Rim for smooth drinking
The rim boasts both the cleanliness and pleasant drinking experience of stainless steel. The upper part of the rim was curled to reproduce the mouth feel of a mug.
Reliably keeps drinks cold or hot with vacuum insulation
High heat-retaining/cold-storage performance achieved with the stainless steel, double-walled, vacuum structure! Hot drinks will stay hot and cold drinks will stay cold, so drinks can be kept at the best temperatures for drinking for many hours.
Maintenance

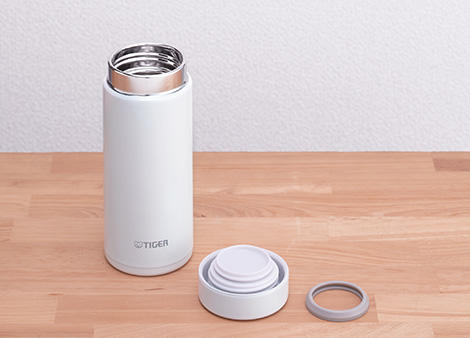

All you have to clean are just three parts! Easy to clean
Entirely washable body!
The bottom of the vacuum insulated bottle was laser-welded using Tiger’s proprietary technique to prevent water droplets from getting into the bottle through cracks. The bottle can be washed entirely including the removable parts and drained well after washing.
Specifications
-

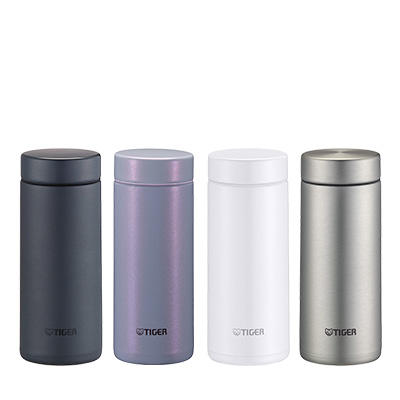

Vacuum Insulated Bottles
- Steel Black<KS>
- Matte Stainless<XM>
- Frost White<WF>
- Bright Purple<VH>
-
Vacuum Insulated Bottles
- Bright Purple<VH>
- Steel Black<KS>
- Matte Stainless<XM>
- Frost White<WF>
-

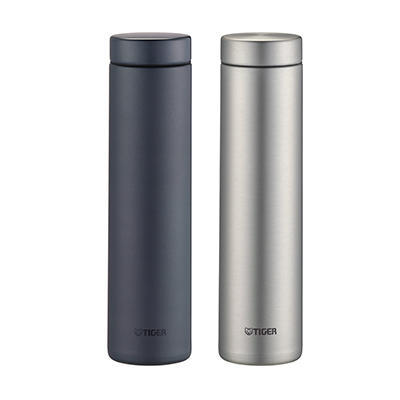

Vacuum Insulated Bottles
- Steel Black<KS>
- Matte Stainless<XM>
| Product number | MMZ-K351 | MMZ-K501 | MMZ-K601 |
|---|---|---|---|
| Color |
Steel Black<KS> Matte Stainless<XM> Frost White<WF> Bright Purple<VH> |
Bright Purple<VH> Steel Black<KS> Matte Stainless<XM> Frost White<WF> |
Steel Black<KS> Matte Stainless<XM> |
| Capacity | 0.35L | 0.5L | 0.6L |
| Heat Retention (6h) | 69℃ or more | 74℃ or more | 76℃ or more |
| Heat Retention (1h) | 86℃ or more | 88℃ or more | 89℃ or more |
| Cold Retention (6h) | 8℃ or less | 7℃ or less | 7℃ or less |
| Size W×D×H (Approximate value) | 6.6×6.6×16.4(cm) | 6.6×6.6×21.6(cm) | 6.6×6.6×25.1(cm) |
| Weight (Approximate value) | 0.17kg | 0.19kg | 0.23kg |
| Caliber (Approximate value) | 4.4(cm) | 4.4(cm) | 4.4(cm) |
| Producing Country | China | China | China |
* Actual capacity is the volume of drink that can be contained actually in the bottle when the stopper included with the product is put on the bottle.
* The heat insulation effect is the temperature of water in the bottle 1 to 6 hours after the bottle filled with hot water at 95±1°C is placed in an upright position and left standing at a room temperature of 20±2°C.
* The low-temperature insulation effect is the temperature of water in the bottle 6 hours after the bottle filled with cold water at 4±1°C is placed in an upright position and left standing at a room temperature of 20±2°C
